| 产品特性：模块 | 品牌：SIERRA | 型号：EM7565 |
| 信息传送内容：都可以 | 支持网络：4G | 频段：多频MHz |
| 发射功率：２W | 短信息模式：都可以 | 外形尺寸：１mm |

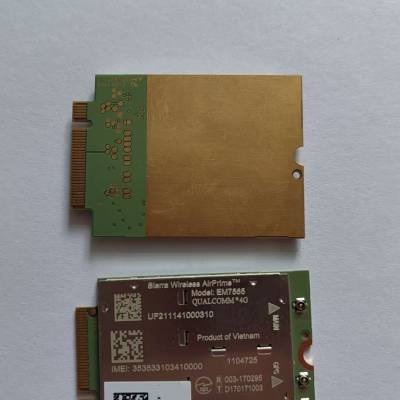

型号：EM7565
尺寸：42 x 30 x 2.3 mm
网络标准：Cat 15 –800Mbps
AirPrime?EM7565 Specifications
Cellular
Possible LTE DL Product variants:Cat 15 –800Mbps (80MHz 4CA with 256 QAM)Cat 12 –600Mbps (60MHz 3CA with 256 QAM)Cat 10 –450Mbps (60MHz 3CA with 64 QAM)
Uplink speed up to 150 Mbps (Cat 13)(64 QAM + intra-band contiguous 2CA)
FDD/TDD LTE Bands:1-5, 7, 8, 9, 12, 13, 17, 18, 19, 20, 26, 28, 29, 30, 32, 41, 42, 43, 66
LTE-U/ LTE-LAA Bands: 46, 252, 255 (5GHz)
DC-HSPA+ (42/5.76 Mbps)1,2,3,4,5,6,8,9,19
Hardware Specs
Dimensions: 42 x 30 x 2.3 mm [Type 3042]
Chipset: Qualcomm MDM9230
Main interfaces:
USB 3.0, USB 2.0 & PCIe(Future)
GPIOs for antenna tuning and SAR control
Temperature ranges:
–30C to +70C (operating class A) TBC
–40C to +85C (operating class B) TBC
Storage Temperature: –40C to +85C
Key Features
Single WW SKU for North America, Europe, APAC & ROW
GNSS (GPS, Glonass, Galileo, BeiDou) Dedicated antenna connector with bias or shared on persitySupport for SUPL and XTRA
Embedded SIM (eUICCcapable) -Optional
Low power consumption
Storage for multiple FW images in on board Flash
Gobi API, MBIM interface
Basic and Extended AT Commands
Host OS: Skylight for Windows 7, 8/8.1, 10; Linux and Android
Standard features:
Secure boot prevents unauthorized code on the target
Firmware image switching for network flexibility
Dual SIM single standby (DSSS) enhances roaming coverage
Free, unlimited FOTA through AirVantage?FOTA Edition
Certifications and Approvals
Planned: FCC, IC, CE, PTCRB, GCF, NCC
